Description

Base class for all Tunnelling effects.
Calculates motion parameters and contains shared settings.

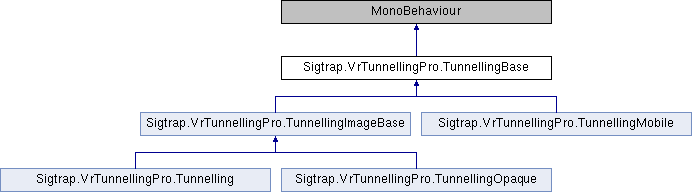

Inheritance diagram for Sigtrap.VrTunnellingPro.TunnellingBase:

Public Member Functions
virtual void	ResetCounterMotion ()
	Reset cage and skybox orientation/offset when using counter motion. More...

Static Public Member Functions
static Vector3	SmoothDampAngle (Vector3 current, Vector3 target, ref Vector3 vel, float smoothTime, float maxSpeed, float dT)

Public Attributes
const string	GLOBAL_PROP_FOGCOLOR = "_VRTP_Cage_FogColor"
	Global shader parameter controlling fog color in shaders using CageFog.cginc. More...

const string	GLOBAL_PROP_FOGDENSITY = "_VRTP_Cage_FogDensity"
	Global shader parameter controlling fog density in shaders using CageFog.cginc. More...

const string	GLOBAL_PROP_FOGPOWER = "_VRTP_Cage_FogPower"
	Global shader parameter controlling fog falloff in shaders using CageFog.cginc. More...

const string	GLOBAL_PROP_FOGBLEND = "_VRTP_Cage_FogBlend"
	Global shader parameter controlling fog strength in shaders using CageFog.cginc. More...

const float	FEATHER_MAX = 0.5f

const float	MOTION_STRENGTH_MAX = 2f

const float	COUNTER_STRENGTH_MAX = 2f

const int	FPSDIV_MAX = 60

Transform	motionTarget
	Motion calculated using this Transform. Generally shouldn't use HMD. More...

Color	effectColor = Color.black
	Colour of vignette. Alpha is blend factor. If applyColorToBackground true, will affect background of advanced modes. More...

float	effectCoverage = 0.75f
	Maximum screen coverage. More...

float	effectFeather = 0.1f
	Feather around cut-off as fraction of screen. More...

Cubemap	effectSkybox
	Skybox to apply to vignette. Requires skybox mode to be enabled (varies depending upon effect). More...

bool	applyColorToBackground = false
	Depending upon effect mode, causes effectColor to affect background. Basic vignette mode always uses effectColor. More...

bool	useAngularVelocity = true
	Add angular velocity to effect strength? Helps players with regular sim-sickness. More...

float	angularVelocityStrength = 1
	Strength contributed to effect by angular velocity. More...

float	angularVelocityMin = 0
	No effect contribution below this angular velocity. Degrees per second More...

float	angularVelocityMax = 180
	Clamp effect contribution above this angular velocity. Degrees per second More...

float	angularVelocitySmoothing = 0.15f
	Smoothing time for angular velocity calculation. 0 for no smoothing More...

bool	useAcceleration = false
	Add linear acceleration to effect strength? Helps players with moderate sim-sickness. More...

float	accelerationStrength = 1
	Strength contributed to effect by linear acceleration. More...

float	accelerationMin
	No effect contribution below this acceleration. Metres per second squared More...

float	accelerationMax
	Clamp effect contribution above this acceleration. Metres per second squared More...

float	accelerationSmoothing = 0.15f
	Smoothing time for acceleration calculation. 0 for no smoothing More...

bool	useVelocity = false
	Add translation velocity to effect strength? Helps players with strong sim-sickness. More...

float	velocityStrength = 1
	Strength contributed to effect by linear velocity. More...

float	velocityMin
	No effect contribution below this velocity. Metres per second More...

float	velocityMax
	Clamp effect contribution above this velocity. Metres per second More...

float	velocitySmoothing = 0.15f
	Smoothing time for velocity calculation. 0 for no smoothing More...

ForceVignetteMode	forceVignetteMode
	How to combine forceVignetteValue with motion value to calculate effect radius. More...

float	forceVignetteValue
	Force effect to be this value. Combined with motion value according to forceVignetteMode. More...

Transform	motionEffectTarget = null
	Transform used for artificial tilt and framerate division. Should be a child of Motion Target and a parent of the HMD. Target's transform should not be modified by anything else. More...

bool	useCounterMotion = false
	Counter-motion moves/rotates cage/skybox opposite to motionTarget motion. More...

float	counterRotationStrength = 1f
	Scale counter-rotation relative to motionTarget motion. More...

Vector3	counterRotationPerAxis = Vector3.up
	Scale counter-rotation on individual axes. Multiplied by counterVelocityStrength. X: Pitch, Y: Yaw, Z: Roll. More...

bool	useArtificialTilt = false
	Artifically tilt the camera when moving to simulate acceleration forces. More...

float	tiltStrength = 0f
	Strength of artificial tilt relative to linear acceleration. Degrees per (metres per second squared). More...

Vector2	tiltMaxAngles = 5*Vector2.one
	Maximum artificial tilt in degrees. Zero for no clamp. X: Pitch, Y: Roll. More...

float	tiltSmoothTime = 0f
	Smooth out tilt over this time. More...

int	framerateDivision = 1
	Divide VR framerate by this number while keeping HMD and cage at device framerate. Forces stepped motion of motionEffectTarget rather than changing rendering. More...

bool	divideTranslation = true
	Apply framerateDivision division to linear motion. More...

bool	divideRotation = true
	Apply framerateDivision division to rotation. More...

Properties
bool	usingMotionEffectTarget `[get]`
	Indicates whether the motionEffectTarget is currently being used for motion effects. More...

Public Types
enum	BackgroundMode { BackgroundMode.COLOR, BackgroundMode.SKYBOX, BackgroundMode.CAGE_COLOR, BackgroundMode.CAGE_SKYBOX, BackgroundMode.CAGE_ONLY, BackgroundMode.BLUR }
	Determines what is drawn over the periphery in the vignetted region. More...

enum	MaskMode { MaskMode.OFF, MaskMode.MASK, MaskMode.WINDOW, MaskMode.PORTAL }
	Determines whether and how objects can mask the vignette. More...

enum	MSAA { MSAA.AUTO, MSAA.OFF, MSAA.X2, MSAA.X4, X8 }
	Antialiasing modes for cage RenderTexture. More...

enum	ForceVignetteMode { ForceVignetteMode.NONE = 0, ForceVignetteMode.CONSTANT = 10, ForceVignetteMode.MAX = 20, ForceVignetteMode.MIN = 30, ADD = 40 }
	How to calculate effect radius according to motion and force effect value. More...

Member Enumeration Documentation

◆ BackgroundMode

enum Sigtrap.VrTunnellingPro.TunnellingBase.BackgroundMode

strong

Determines what is drawn over the periphery in the vignetted region.

Enumerator
COLOR	Vignette uses a simple color.
SKYBOX	Vignette uses a skybox.
CAGE_COLOR	Vignette reveals a 3D sub-scene to provide a static "cage" for static reference. Cage scene has a solid backgorund color.
CAGE_SKYBOX	Vignette reveals a 3D sub-scene to provide a static "cage" for static reference. Cage scene has a skybox background.
CAGE_ONLY	Vignette reveals a 3D sub-scene to provide a static "cage" for static reference. Cage scene has a transparent background and is composited on top of the main scene.
BLUR	Vignette blurs, rather than replaces, the periphery.

◆ ForceVignetteMode

enum Sigtrap.VrTunnellingPro.TunnellingBase.ForceVignetteMode

strong

How to calculate effect radius according to motion and force effect value.

Enumerator
NONE	summary>Do not force effect value summary>Ignore motion and force effect value
CONSTANT	summary>Take the maximum of force value and motion value
MAX	summary>Take the minimum of force value and motion value
MIN	summary>Add force effect value and motion value

◆ MaskMode

enum Sigtrap.VrTunnellingPro.TunnellingBase.MaskMode

strong

Determines whether and how objects can mask the vignette.

Enumerator
OFF	No masking used.
MASK	Vignette is excluded by mask objects.
WINDOW	Background is always shown except through mask objects.
PORTAL	Background is always shown but only through mask objects - inverted WINDOW mode.

◆ MSAA

enum Sigtrap.VrTunnellingPro.TunnellingBase.MSAA

strong

Antialiasing modes for cage RenderTexture.

Enumerator
AUTO	summary>Take MSAA setting from quality settings. summary>Don't use MSAA.
OFF	summary>2x MSAA
X2	summary>4x MSAA
X4	summary>8x MSAA

Member Function Documentation

◆ ResetCounterMotion()

virtual void Sigtrap.VrTunnellingPro.TunnellingBase.ResetCounterMotion ( )

inlinevirtual

Reset cage and skybox orientation/offset when using counter motion.

Reimplemented in Sigtrap.VrTunnellingPro.TunnellingImageBase.

Member Data Documentation

◆ accelerationMax

float Sigtrap.VrTunnellingPro.TunnellingBase.accelerationMax

Clamp effect contribution above this acceleration. Metres per second squared

◆ accelerationMin

float Sigtrap.VrTunnellingPro.TunnellingBase.accelerationMin

No effect contribution below this acceleration. Metres per second squared

◆ accelerationSmoothing

float Sigtrap.VrTunnellingPro.TunnellingBase.accelerationSmoothing = 0.15f

Smoothing time for acceleration calculation. 0 for no smoothing

◆ accelerationStrength

float Sigtrap.VrTunnellingPro.TunnellingBase.accelerationStrength = 1

Strength contributed to effect by linear acceleration.

◆ angularVelocityMax

float Sigtrap.VrTunnellingPro.TunnellingBase.angularVelocityMax = 180

Clamp effect contribution above this angular velocity. Degrees per second

◆ angularVelocityMin

float Sigtrap.VrTunnellingPro.TunnellingBase.angularVelocityMin = 0

No effect contribution below this angular velocity. Degrees per second

◆ angularVelocitySmoothing

float Sigtrap.VrTunnellingPro.TunnellingBase.angularVelocitySmoothing = 0.15f

Smoothing time for angular velocity calculation. 0 for no smoothing

◆ angularVelocityStrength

float Sigtrap.VrTunnellingPro.TunnellingBase.angularVelocityStrength = 1

Strength contributed to effect by angular velocity.

◆ applyColorToBackground

bool Sigtrap.VrTunnellingPro.TunnellingBase.applyColorToBackground = false

Depending upon effect mode, causes effectColor to affect background.
Basic vignette mode always uses effectColor.

◆ counterRotationPerAxis

Vector3 Sigtrap.VrTunnellingPro.TunnellingBase.counterRotationPerAxis = Vector3.up

Scale counter-rotation on individual axes.
Multiplied by counterVelocityStrength.
X: Pitch, Y: Yaw, Z: Roll.

◆ counterRotationStrength

float Sigtrap.VrTunnellingPro.TunnellingBase.counterRotationStrength = 1f

Scale counter-rotation relative to motionTarget motion.

◆ divideRotation

bool Sigtrap.VrTunnellingPro.TunnellingBase.divideRotation = true

Apply framerateDivision division to rotation.

◆ divideTranslation

bool Sigtrap.VrTunnellingPro.TunnellingBase.divideTranslation = true

Apply framerateDivision division to linear motion.

◆ effectColor

Color Sigtrap.VrTunnellingPro.TunnellingBase.effectColor = Color.black

Colour of vignette. Alpha is blend factor.
If applyColorToBackground true, will affect background of advanced modes.

◆ effectCoverage

float Sigtrap.VrTunnellingPro.TunnellingBase.effectCoverage = 0.75f

Maximum screen coverage.

◆ effectFeather

float Sigtrap.VrTunnellingPro.TunnellingBase.effectFeather = 0.1f

Feather around cut-off as fraction of screen.

◆ effectSkybox

Cubemap Sigtrap.VrTunnellingPro.TunnellingBase.effectSkybox

Skybox to apply to vignette.
Requires skybox mode to be enabled (varies depending upon effect).

◆ forceVignetteMode

ForceVignetteMode Sigtrap.VrTunnellingPro.TunnellingBase.forceVignetteMode

How to combine forceVignetteValue with motion value to calculate effect radius.

◆ forceVignetteValue

float Sigtrap.VrTunnellingPro.TunnellingBase.forceVignetteValue

Force effect to be this value.
Combined with motion value according to forceVignetteMode.

◆ framerateDivision

int Sigtrap.VrTunnellingPro.TunnellingBase.framerateDivision = 1

Divide VR framerate by this number while keeping HMD and cage at device framerate.
Forces stepped motion of motionEffectTarget rather than changing rendering.

◆ GLOBAL_PROP_FOGBLEND

const string Sigtrap.VrTunnellingPro.TunnellingBase.GLOBAL_PROP_FOGBLEND = "_VRTP_Cage_FogBlend"

Global shader parameter controlling fog strength in shaders using CageFog.cginc.

◆ GLOBAL_PROP_FOGCOLOR

const string Sigtrap.VrTunnellingPro.TunnellingBase.GLOBAL_PROP_FOGCOLOR = "_VRTP_Cage_FogColor"

Global shader parameter controlling fog color in shaders using CageFog.cginc.

◆ GLOBAL_PROP_FOGDENSITY

const string Sigtrap.VrTunnellingPro.TunnellingBase.GLOBAL_PROP_FOGDENSITY = "_VRTP_Cage_FogDensity"

Global shader parameter controlling fog density in shaders using CageFog.cginc.

◆ GLOBAL_PROP_FOGPOWER

const string Sigtrap.VrTunnellingPro.TunnellingBase.GLOBAL_PROP_FOGPOWER = "_VRTP_Cage_FogPower"

Global shader parameter controlling fog falloff in shaders using CageFog.cginc.

◆ motionEffectTarget

Transform Sigtrap.VrTunnellingPro.TunnellingBase.motionEffectTarget = null

Transform used for artificial tilt and framerate division.
Should be a child of Motion Target and a parent of the HMD.
Target's transform should not be modified by anything else.

◆ motionTarget

Transform Sigtrap.VrTunnellingPro.TunnellingBase.motionTarget

Motion calculated using this Transform. Generally shouldn't use HMD.

◆ tiltMaxAngles

Vector2 Sigtrap.VrTunnellingPro.TunnellingBase.tiltMaxAngles = 5*Vector2.one

Maximum artificial tilt in degrees. Zero for no clamp.
X: Pitch, Y: Roll.

◆ tiltSmoothTime

float Sigtrap.VrTunnellingPro.TunnellingBase.tiltSmoothTime = 0f

Smooth out tilt over this time.

◆ tiltStrength

float Sigtrap.VrTunnellingPro.TunnellingBase.tiltStrength = 0f

Strength of artificial tilt relative to linear acceleration.
Degrees per (metres per second squared).

◆ useAcceleration

bool Sigtrap.VrTunnellingPro.TunnellingBase.useAcceleration = false

Add linear acceleration to effect strength? Helps players with moderate sim-sickness.

◆ useAngularVelocity

bool Sigtrap.VrTunnellingPro.TunnellingBase.useAngularVelocity = true

Add angular velocity to effect strength? Helps players with regular sim-sickness.

◆ useArtificialTilt

bool Sigtrap.VrTunnellingPro.TunnellingBase.useArtificialTilt = false

Artifically tilt the camera when moving to simulate acceleration forces.

◆ useCounterMotion

bool Sigtrap.VrTunnellingPro.TunnellingBase.useCounterMotion = false

Counter-motion moves/rotates cage/skybox opposite to motionTarget motion.

◆ useVelocity

bool Sigtrap.VrTunnellingPro.TunnellingBase.useVelocity = false

Add translation velocity to effect strength? Helps players with strong sim-sickness.

◆ velocityMax

float Sigtrap.VrTunnellingPro.TunnellingBase.velocityMax

Clamp effect contribution above this velocity. Metres per second

◆ velocityMin

float Sigtrap.VrTunnellingPro.TunnellingBase.velocityMin

No effect contribution below this velocity. Metres per second

◆ velocitySmoothing

float Sigtrap.VrTunnellingPro.TunnellingBase.velocitySmoothing = 0.15f

Smoothing time for velocity calculation. 0 for no smoothing

◆ velocityStrength

float Sigtrap.VrTunnellingPro.TunnellingBase.velocityStrength = 1

Strength contributed to effect by linear velocity.

Property Documentation

◆ usingMotionEffectTarget

bool Sigtrap.VrTunnellingPro.TunnellingBase.usingMotionEffectTarget

get

Indicates whether the motionEffectTarget is currently being used for motion effects.

The documentation for this class was generated from the following file:

TunnellingBase.cs

Description

Public Member Functions

Static Public Member Functions

Public Attributes

Properties

Public Types

Member Enumeration Documentation

◆ BackgroundMode

◆ ForceVignetteMode

◆ MaskMode

◆ MSAA

Member Function Documentation

◆ ResetCounterMotion()

Member Data Documentation

◆ accelerationMax

◆ accelerationMin

◆ accelerationSmoothing

◆ accelerationStrength

◆ angularVelocityMax

◆ angularVelocityMin

◆ angularVelocitySmoothing

◆ angularVelocityStrength

◆ applyColorToBackground

◆ counterRotationPerAxis

◆ counterRotationStrength

◆ divideRotation

◆ divideTranslation

◆ effectColor

◆ effectCoverage

◆ effectFeather

◆ effectSkybox

◆ forceVignetteMode

◆ forceVignetteValue

◆ framerateDivision

◆ GLOBAL_PROP_FOGBLEND

◆ GLOBAL_PROP_FOGCOLOR

◆ GLOBAL_PROP_FOGDENSITY

◆ GLOBAL_PROP_FOGPOWER

◆ motionEffectTarget

◆ motionTarget

◆ tiltMaxAngles

◆ tiltSmoothTime

◆ tiltStrength

◆ useAcceleration

◆ useAngularVelocity

◆ useArtificialTilt

◆ useCounterMotion

◆ useVelocity

◆ velocityMax

◆ velocityMin

◆ velocitySmoothing

◆ velocityStrength

Property Documentation

◆ usingMotionEffectTarget
