Description

Base class for non-mobile effects (Tunnelling and TunnellingOpaque).
These effects use full screen post-processing.
This class implements all core functionality. The only difference between Tunnelling and TunnellingOpaque is drawing after everything or after opaque geometry.

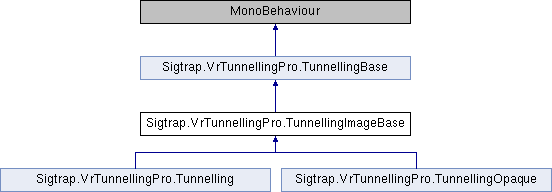

Inheritance diagram for Sigtrap.VrTunnellingPro.TunnellingImageBase:

Public Member Functions
void	AddObjectToMask (Renderer r, bool includeChildren=false)
	Start using object to mask tunnelling effect. More...

void	RemoveObjectFromMask (Renderer r, bool includeChildren=false)
	Stop using object to mask tunnelling effect. More...

void	UpdateCage ()
	Updates cached objects to render in cage mode. Use if adding/removing children from Cage Parent. No need to call if moving/modifying/toggling existing children. More...

override void	ResetCounterMotion ()
	Reset cage and skybox orientation/offset when using counter motion. More...

void	ApplyPreset (TunnellingPreset p)
	Override some or all settings using a TunnellingPreset asset. More...

Public Attributes
const string	GLOBAL_PROP_WORLD2CAGE = "_VRTP_WorldToCage"
	Global shader parameter for world-to-cage vertex matrix. Used in counter-motion triplanar shaders. More...

const string	GLOBAL_PROP_WORLD2CAGE_NORMAL = "_VRTP_WorldToCageNormal"
	Global shader parameter for world-to-cage normals matrix. Used in counter-motion triplanar shaders. More...

const string	GLOBAL_PROP_CAGEPOS = "_VRTP_CagePos"
	Global shader parameter for relative position offset between cage and world. In other words, how far has player artificially locomoted from reference point? Used in counter-motion triplanar shaders. More...

BackgroundMode	backgroundMode = BackgroundMode.COLOR
	Determines what is rendered in the vignette effect. More...

float	effectOverlay = 0
	Allows a persistent overlay of the effect across the entire view. Applies to SKYBOX, CAGE_COLOUR, CAGE_SKYBOX modes. More...

int	cageDownsample = 0
	Render cage at half or quarter resolution. 1: Half res. 2: Quarter res. More...

MSAA	cageAntiAliasing = MSAA.AUTO
	Manually set cage MSAA, or AUTO to follow quality settings. More...

bool	cageUpdateEveryFrame =false
	FALSE: Cache cage objects in OnEnable. CAN move/modify objects CANNOT add/destroy objects TRUE: Refresh objects each frame. There will be some GC alloc each Update. Consider calling UpdateCage() manually. More...

float	cageFogDensity = 0.01f
	Density of fog for materials using Cage Fogged shaders More...

float	cageFogPower = 2
	Fog falloff for materials using Cage Fogged shaders More...

float	cageFogBlend = 1
	Fog blending for materials using Cage Fogged shaders. 0: No fog. 1: 100% fog. More...

MaskMode	maskMode = MaskMode.OFF

int	blurDownsample = 3
	Downsample before blurring. Higher is faster and blurrier. More...

float	blurDistance = 3
	Blur radius. More...

int	blurPasses = 3
	Blur passes. Higher is slower but blurrier. More...

BlurKernel	blurSamples
	How many samples to use per pixel per pass? More...

bool	irisZRejection = true
	At start of rendering, fill Z buffer where effect will be to save fillrate on drawing world. Disabled with blur or masking. More...

CounterVelocityMode	counterVelocityMode = CounterVelocityMode.OFF
	Choose counter-velocity effect implementation, or disable. SHADER mode requires cage objects to use Cage Counter Motion shaders. More...

float	counterVelocityResetDistance = 0
	If counterVelocityMode is REAL, reset cage position and rotation when it has travelled this far. If <= 0, no distance-based reset. More...

float	counterVelocityResetTime = 0
	If counterVelocityMode is REAL, reset cage position and rotation after this time. If <= 0, no time-based reset. More...

float	counterVelocityStrength = 1f
	Scale counter-velocity relative to motionTarget motion. More...

Vector3	counterVelocityPerAxis = Vector3.one
	Scale counter-velocity on individual axes. Multiplied by counterVelocityStrength. More...

Public Attributes inherited from Sigtrap.VrTunnellingPro.TunnellingBase
const string	GLOBAL_PROP_FOGCOLOR = "_VRTP_Cage_FogColor"
	Global shader parameter controlling fog color in shaders using CageFog.cginc. More...

const string	GLOBAL_PROP_FOGDENSITY = "_VRTP_Cage_FogDensity"
	Global shader parameter controlling fog density in shaders using CageFog.cginc. More...

const string	GLOBAL_PROP_FOGPOWER = "_VRTP_Cage_FogPower"
	Global shader parameter controlling fog falloff in shaders using CageFog.cginc. More...

const string	GLOBAL_PROP_FOGBLEND = "_VRTP_Cage_FogBlend"
	Global shader parameter controlling fog strength in shaders using CageFog.cginc. More...

const float	FEATHER_MAX = 0.5f

const float	MOTION_STRENGTH_MAX = 2f

const float	COUNTER_STRENGTH_MAX = 2f

const int	FPSDIV_MAX = 60

Transform	motionTarget
	Motion calculated using this Transform. Generally shouldn't use HMD. More...

Color	effectColor = Color.black
	Colour of vignette. Alpha is blend factor. If applyColorToBackground true, will affect background of advanced modes. More...

float	effectCoverage = 0.75f
	Maximum screen coverage. More...

float	effectFeather = 0.1f
	Feather around cut-off as fraction of screen. More...

Cubemap	effectSkybox
	Skybox to apply to vignette. Requires skybox mode to be enabled (varies depending upon effect). More...

bool	applyColorToBackground = false
	Depending upon effect mode, causes effectColor to affect background. Basic vignette mode always uses effectColor. More...

bool	useAngularVelocity = true
	Add angular velocity to effect strength? Helps players with regular sim-sickness. More...

float	angularVelocityStrength = 1
	Strength contributed to effect by angular velocity. More...

float	angularVelocityMin = 0
	No effect contribution below this angular velocity. Degrees per second More...

float	angularVelocityMax = 180
	Clamp effect contribution above this angular velocity. Degrees per second More...

float	angularVelocitySmoothing = 0.15f
	Smoothing time for angular velocity calculation. 0 for no smoothing More...

bool	useAcceleration = false
	Add linear acceleration to effect strength? Helps players with moderate sim-sickness. More...

float	accelerationStrength = 1
	Strength contributed to effect by linear acceleration. More...

float	accelerationMin
	No effect contribution below this acceleration. Metres per second squared More...

float	accelerationMax
	Clamp effect contribution above this acceleration. Metres per second squared More...

float	accelerationSmoothing = 0.15f
	Smoothing time for acceleration calculation. 0 for no smoothing More...

bool	useVelocity = false
	Add translation velocity to effect strength? Helps players with strong sim-sickness. More...

float	velocityStrength = 1
	Strength contributed to effect by linear velocity. More...

float	velocityMin
	No effect contribution below this velocity. Metres per second More...

float	velocityMax
	Clamp effect contribution above this velocity. Metres per second More...

float	velocitySmoothing = 0.15f
	Smoothing time for velocity calculation. 0 for no smoothing More...

ForceVignetteMode	forceVignetteMode
	How to combine forceVignetteValue with motion value to calculate effect radius. More...

float	forceVignetteValue
	Force effect to be this value. Combined with motion value according to forceVignetteMode. More...

Transform	motionEffectTarget = null
	Transform used for artificial tilt and framerate division. Should be a child of Motion Target and a parent of the HMD. Target's transform should not be modified by anything else. More...

bool	useCounterMotion = false
	Counter-motion moves/rotates cage/skybox opposite to motionTarget motion. More...

float	counterRotationStrength = 1f
	Scale counter-rotation relative to motionTarget motion. More...

Vector3	counterRotationPerAxis = Vector3.up
	Scale counter-rotation on individual axes. Multiplied by counterVelocityStrength. X: Pitch, Y: Yaw, Z: Roll. More...

bool	useArtificialTilt = false
	Artifically tilt the camera when moving to simulate acceleration forces. More...

float	tiltStrength = 0f
	Strength of artificial tilt relative to linear acceleration. Degrees per (metres per second squared). More...

Vector2	tiltMaxAngles = 5*Vector2.one
	Maximum artificial tilt in degrees. Zero for no clamp. X: Pitch, Y: Roll. More...

float	tiltSmoothTime = 0f
	Smooth out tilt over this time. More...

int	framerateDivision = 1
	Divide VR framerate by this number while keeping HMD and cage at device framerate. Forces stepped motion of motionEffectTarget rather than changing rendering. More...

bool	divideTranslation = true
	Apply framerateDivision division to linear motion. More...

bool	divideRotation = true
	Apply framerateDivision division to rotation. More...

Properties
static TunnellingImageBase	instance `[get]`
	Singleton instance. Will refer to either a Tunnelling or TunnellingOpaque effect. Will not refer to a TunnellingMobile effect. More...

bool	usingMask `[get]`
	Is effect currently using/rendering a mask? More...

bool	usingCage `[get]`
	Is effect currently using/rendering the cage? More...

Properties inherited from Sigtrap.VrTunnellingPro.TunnellingBase
bool	usingMotionEffectTarget `[get]`
	Indicates whether the motionEffectTarget is currently being used for motion effects. More...

Public Types
enum	BlurKernel { BlurKernel.FIVE = 0, BlurKernel.NINE = 1, BlurKernel.THIRTEEN = 2 }

enum	CounterVelocityMode { CounterVelocityMode.OFF, CounterVelocityMode.SHADER, CounterVelocityMode.REAL }

Public Types inherited from Sigtrap.VrTunnellingPro.TunnellingBase
enum	BackgroundMode { BackgroundMode.COLOR, BackgroundMode.SKYBOX, BackgroundMode.CAGE_COLOR, BackgroundMode.CAGE_SKYBOX, BackgroundMode.CAGE_ONLY, BackgroundMode.BLUR }
	Determines what is drawn over the periphery in the vignetted region. More...

enum	MaskMode { MaskMode.OFF, MaskMode.MASK, MaskMode.WINDOW, MaskMode.PORTAL }
	Determines whether and how objects can mask the vignette. More...

enum	MSAA { MSAA.AUTO, MSAA.OFF, MSAA.X2, MSAA.X4, X8 }
	Antialiasing modes for cage RenderTexture. More...

enum	ForceVignetteMode { ForceVignetteMode.NONE = 0, ForceVignetteMode.CONSTANT = 10, ForceVignetteMode.MAX = 20, ForceVignetteMode.MIN = 30, ADD = 40 }
	How to calculate effect radius according to motion and force effect value. More...

Additional Inherited Members
Static Public Member Functions inherited from Sigtrap.VrTunnellingPro.TunnellingBase
static Vector3	SmoothDampAngle (Vector3 current, Vector3 target, ref Vector3 vel, float smoothTime, float maxSpeed, float dT)

Member Enumeration Documentation

◆ BlurKernel

enum Sigtrap.VrTunnellingPro.TunnellingImageBase.BlurKernel

strong

Enumerator
FIVE	Blur uses a 5x5 sample kernel
NINE	Blur uses a 9x9 sample kernel
THIRTEEN	Blur uses a 13x13 sample kernel

◆ CounterVelocityMode

enum Sigtrap.VrTunnellingPro.TunnellingImageBase.CounterVelocityMode

strong

Enumerator
OFF	No counter-velocity effect </summmary>
SHADER	Counter-velocity effect uses Cage Counter Motion triplanar shaders
REAL	Counter-vloecity effect moves cage

Member Function Documentation

◆ AddObjectToMask()

void Sigtrap.VrTunnellingPro.TunnellingImageBase.AddObjectToMask	(	Renderer	r,
		bool	includeChildren = `false`
	)

inline

Start using object to mask tunnelling effect.

Parameters

r	Renderer to add to mask.
includeChildren	If set to `true` include children.

◆ ApplyPreset()

void Sigtrap.VrTunnellingPro.TunnellingImageBase.ApplyPreset ( TunnellingPreset p )

inline

Override some or all settings using a TunnellingPreset asset.

◆ RemoveObjectFromMask()

void Sigtrap.VrTunnellingPro.TunnellingImageBase.RemoveObjectFromMask	(	Renderer	r,
		bool	includeChildren = `false`
	)

inline

Stop using object to mask tunnelling effect.

Parameters

r	Renderer to remove from mask.
includeChildren	If set to `true` include children.

◆ ResetCounterMotion()

override void Sigtrap.VrTunnellingPro.TunnellingImageBase.ResetCounterMotion ( )

inlinevirtual

Reset cage and skybox orientation/offset when using counter motion.

Reimplemented from Sigtrap.VrTunnellingPro.TunnellingBase.

◆ UpdateCage()

void Sigtrap.VrTunnellingPro.TunnellingImageBase.UpdateCage ( )

inline

Updates cached objects to render in cage mode. Use if adding/removing children from Cage Parent. No need to call if moving/modifying/toggling existing children.

Member Data Documentation

◆ backgroundMode

BackgroundMode Sigtrap.VrTunnellingPro.TunnellingImageBase.backgroundMode = BackgroundMode.COLOR

Determines what is rendered in the vignette effect.

◆ blurDistance

float Sigtrap.VrTunnellingPro.TunnellingImageBase.blurDistance = 3

Blur radius.

◆ blurDownsample

int Sigtrap.VrTunnellingPro.TunnellingImageBase.blurDownsample = 3

Downsample before blurring. Higher is faster and blurrier.

◆ blurPasses

int Sigtrap.VrTunnellingPro.TunnellingImageBase.blurPasses = 3

Blur passes. Higher is slower but blurrier.

◆ blurSamples

BlurKernel Sigtrap.VrTunnellingPro.TunnellingImageBase.blurSamples

How many samples to use per pixel per pass?

◆ cageAntiAliasing

MSAA Sigtrap.VrTunnellingPro.TunnellingImageBase.cageAntiAliasing = MSAA.AUTO

Manually set cage MSAA, or AUTO to follow quality settings.

◆ cageDownsample

int Sigtrap.VrTunnellingPro.TunnellingImageBase.cageDownsample = 0

Render cage at half or quarter resolution.
1: Half res. 2: Quarter res.

◆ cageFogBlend

float Sigtrap.VrTunnellingPro.TunnellingImageBase.cageFogBlend = 1

Fog blending for materials using Cage Fogged shaders. 0: No fog. 1: 100% fog.

◆ cageFogDensity

float Sigtrap.VrTunnellingPro.TunnellingImageBase.cageFogDensity = 0.01f

Density of fog for materials using Cage Fogged shaders

◆ cageFogPower

float Sigtrap.VrTunnellingPro.TunnellingImageBase.cageFogPower = 2

Fog falloff for materials using Cage Fogged shaders

◆ cageUpdateEveryFrame

bool Sigtrap.VrTunnellingPro.TunnellingImageBase.cageUpdateEveryFrame =false

FALSE: Cache cage objects in OnEnable.
CAN move/modify objects
CANNOT add/destroy objects
TRUE: Refresh objects each frame.
There will be some GC alloc each Update.
Consider calling UpdateCage() manually.

◆ counterVelocityMode

CounterVelocityMode Sigtrap.VrTunnellingPro.TunnellingImageBase.counterVelocityMode = CounterVelocityMode.OFF

Choose counter-velocity effect implementation, or disable.
SHADER mode requires cage objects to use Cage Counter Motion shaders.

◆ counterVelocityPerAxis

Vector3 Sigtrap.VrTunnellingPro.TunnellingImageBase.counterVelocityPerAxis = Vector3.one

Scale counter-velocity on individual axes.
Multiplied by counterVelocityStrength.

◆ counterVelocityResetDistance

float Sigtrap.VrTunnellingPro.TunnellingImageBase.counterVelocityResetDistance = 0

If counterVelocityMode is REAL, reset cage position and rotation when it has travelled this far.
If <= 0, no distance-based reset.

◆ counterVelocityResetTime

float Sigtrap.VrTunnellingPro.TunnellingImageBase.counterVelocityResetTime = 0

If counterVelocityMode is REAL, reset cage position and rotation after this time.
If <= 0, no time-based reset.

◆ counterVelocityStrength

float Sigtrap.VrTunnellingPro.TunnellingImageBase.counterVelocityStrength = 1f

Scale counter-velocity relative to motionTarget motion.

◆ effectOverlay

float Sigtrap.VrTunnellingPro.TunnellingImageBase.effectOverlay = 0

Allows a persistent overlay of the effect across the entire view.
Applies to SKYBOX, CAGE_COLOUR, CAGE_SKYBOX modes.

◆ GLOBAL_PROP_CAGEPOS

const string Sigtrap.VrTunnellingPro.TunnellingImageBase.GLOBAL_PROP_CAGEPOS = "_VRTP_CagePos"

Global shader parameter for relative position offset between cage and world. In other words, how far has player artificially locomoted from reference point? Used in counter-motion triplanar shaders.

◆ GLOBAL_PROP_WORLD2CAGE

const string Sigtrap.VrTunnellingPro.TunnellingImageBase.GLOBAL_PROP_WORLD2CAGE = "_VRTP_WorldToCage"

Global shader parameter for world-to-cage vertex matrix.
Used in counter-motion triplanar shaders.

◆ GLOBAL_PROP_WORLD2CAGE_NORMAL

const string Sigtrap.VrTunnellingPro.TunnellingImageBase.GLOBAL_PROP_WORLD2CAGE_NORMAL = "_VRTP_WorldToCageNormal"

Global shader parameter for world-to-cage normals matrix.
Used in counter-motion triplanar shaders.

◆ irisZRejection

bool Sigtrap.VrTunnellingPro.TunnellingImageBase.irisZRejection = true

At start of rendering, fill Z buffer where effect will be to save fillrate on drawing world.
Disabled with blur or masking.

Property Documentation

◆ instance

TunnellingImageBase Sigtrap.VrTunnellingPro.TunnellingImageBase.instance

staticget

Singleton instance.
Will refer to either a Tunnelling or TunnellingOpaque effect.
Will not refer to a TunnellingMobile effect.

◆ usingCage

bool Sigtrap.VrTunnellingPro.TunnellingImageBase.usingCage

get

Is effect currently using/rendering the cage?

◆ usingMask

bool Sigtrap.VrTunnellingPro.TunnellingImageBase.usingMask

get

Is effect currently using/rendering a mask?

The documentation for this class was generated from the following file:

TunnellingImageBase.cs

Description

Public Member Functions

Public Attributes

Properties

Public Types

Additional Inherited Members

Member Enumeration Documentation

◆ BlurKernel

◆ CounterVelocityMode

Member Function Documentation

◆ AddObjectToMask()

◆ ApplyPreset()

◆ RemoveObjectFromMask()

◆ ResetCounterMotion()

◆ UpdateCage()

Member Data Documentation

◆ backgroundMode

◆ blurDistance

◆ blurDownsample

◆ blurPasses

◆ blurSamples

◆ cageAntiAliasing

◆ cageDownsample

◆ cageFogBlend

◆ cageFogDensity

◆ cageFogPower

◆ cageUpdateEveryFrame

◆ counterVelocityMode

◆ counterVelocityPerAxis

◆ counterVelocityResetDistance

◆ counterVelocityResetTime

◆ counterVelocityStrength

◆ effectOverlay

◆ GLOBAL_PROP_CAGEPOS

◆ GLOBAL_PROP_WORLD2CAGE

◆ GLOBAL_PROP_WORLD2CAGE_NORMAL

◆ irisZRejection

Property Documentation

◆ instance

◆ usingCage

◆ usingMask
